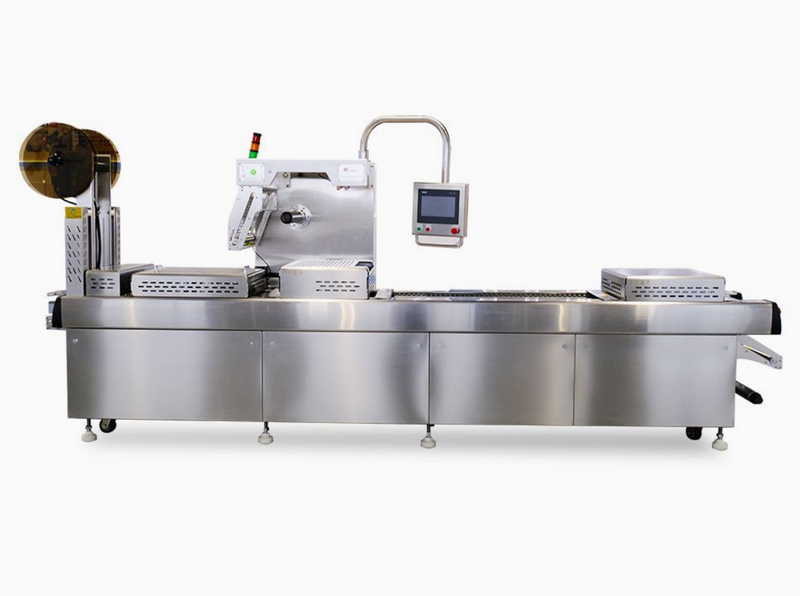

DZDL-420-440 Fully Automatic Stretch Film Vacuum Packaging Machine

DZDL-420 Automatic Stretch Film Vacuum Packaging Machine is a high-efficiency packaging system for the food, medical, and electronics industries. Built with food-grade 304 stainless steel and a 10-inch touchscreen control, it offers durable and user-friendly operation. Its precision servo drive and photoelectric tracking ensure ≤0.5mm packaging accuracy, while quick mold change allows product switching in under 3 minutes, boosting production efficiency. Ideal for vacuum sealing prepared meals, sterile medical devices, and electronic components, this FDA-compliant machine features smart fault diagnosis and a low-noise waste recycling system for easy maintenance. Customizable options like vacuum pumps provide flexible, reliable packaging solutions.
État de disponibilité:
Quantité:
  • DZDL-420

The DZDL-420-440 Automatic Stretch Film Vacuum Packaging Machine is a state-of-the-art, intelligent packaging solution engineered for superior performance in demanding industries like food, medical, and electronics. Constructed with a hygienic, food-grade 304 stainless steel body and controlled via an intuitive 10-inch touchscreen, it masterfully blends industrial durability with operational simplicity. Its core precision is driven by an advanced servo system and photoelectric tracking, achieving exceptional packaging positioning accuracy of ≤0.5mm. Paired with a quick-mold-change design that allows for product switching in under 3 minutes, it significantly boosts your production line's efficiency and flexibility. Ideal for packaging prepared meals, sterile medical devices, and sensitive electronic components, this machine is built to comply with rigorous FDA sanitation standards. With added smart diagnostics, a low-noise waste recycling system, and customizable key components like vacuum pumps, the DZDL-420-440 delivers a reliable, clean, and adaptable packaging solution for your specific needs.

QQ20250527-101616

Machine Features

Equipped with imported SIEMENS color simulation touch screen. Push pull design makes operation more convenient.

According to user product requirements, an imported Panasonic brand servo controlled coding device can be equipped

The upper and lower separated mold has high strength, corrosion resistance, and a more reasonable design. Easy and fast loading and unloading.

Adopting independent cross cutting, the single blade can be moved and adjusted. Computer centralized control, single blade on/of can be selected on the touch  screen.

Adopting imported Panasonic brand MDME102GCG and 152GCG for high-speed and high-precision film running design.




Technical Parameters


Model

DZDL-420-440

Power supply

Three-phase 380V/50Hz

Vacuum

≤200pa

Upper film width

396mm

compressed air

0.6-0.8mpa

Lower film width

422mm

Production capacity

4-6times /min

Working room effective size

384mm x440mm

Dimensions(mm)

See drawing

Total Weight

1800-2200Kg

average power

9kw-10kw/hour
